SA-TK / SI-TK Series — Metric Rod Ends
SA-TK & SI-TK Series
Metric 3-Piece Self-Lubricating Rod Ends
Metric Threads · Copper Alloy PTFE Race · Carbon Steel Silver Zinc Plated Body
13
Compatibilité des marques
13
Recherche croisée
Tout B
Tout N

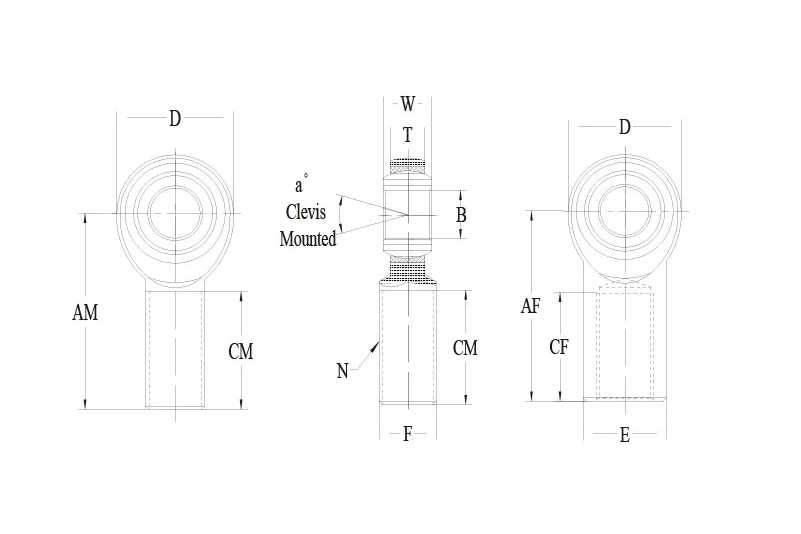

| TYPE | RH PART NO. | LH PART NO. | B | D | N | W | T | CM / CF | Tout a° | A° | STATIC | WEIGHT | QTY | ACTION | DETAILS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ajouter | SA5TK | SAL5TK | 5 | 18.00 | M5 X 0.8 | 8 | 6.00 | 33 (AM) | 19 (CM) | 4 | 7.5 | 13 | |||
| Ajouter | SA6TK | SAL6TK | 6 | 20.00 | M6 X 1.0 | 9 | 6.75 | 36 (AM) | 22 (CM) | 9 | 9.3 | 20 | |||
| Ajouter | SI5TK | SIL5TK | 5 | 18.00 | M5 X 0.8 | 8 | 6.00 | 27 (AF) | 10 (CF) | 4 | 7.5 | 18 | |||
| Ajouter | SI6TK | SIL6TK | 6 | 20.00 | M6 X 1.0 | 9 | 6.75 | 30 (AF) | 12 (CF) | 9 | 9.3 | 27 |
Bague :
- Injecté, nylon renforcé avec PTFE. 52100 bearing steel, precision ground, heat treated, and hard chrome plated for long-wear articulation.
- Acier chrome-moly 4130, traité thermiquement, chromage dur. Copper alloy race with PTFE lining for durable self-lubricating service in metric linkage assemblies.
- Configurations de goujon disponibles : Carbon steel body with silver zinc plating for corrosion resistance and practical OEM replacement service.
Notes
- Stud configurations available: add
Sto the suffix, for exampleSA12TK-S. - Inch size available: check the Nylon moulé par injection series for inch-size equivalents.
- Yellow zinc plating optional when an alternate finish is required for the application.
