lcr-089-linkage-connecting-rod-6-50-in-3-8-24-rh-lh-thread-3-8-in-pin-holes

6.50 in / 3/8-24 RH/LH

LINKAGE ROD

LCR-089 Bielle de tringlerie 6.50 in, filetage à droite/à gauche 3/8-24, trous d’axe de 3/8 in

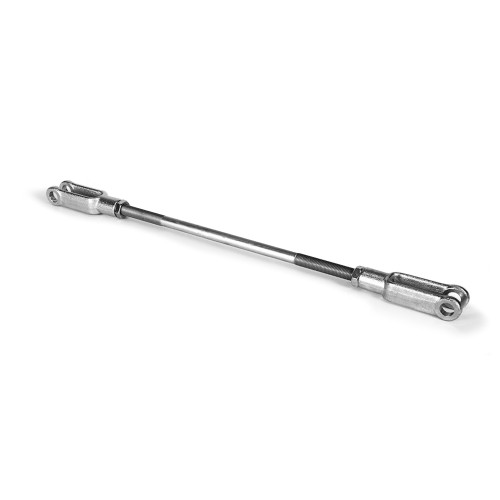

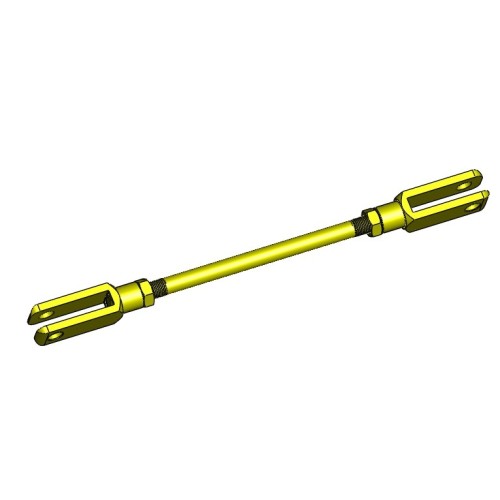

Name: LCR-089 Linkage Connecting Rod 6.50 in, 3/8-24 RH/LH Thread, 3/8 in Pin Holes
Brand: SYZ Rod Ends
SKU: LCR-089
Availability: InStock

Part No.: LCR-089 · Adjustable motion-transfer assembly series

✓ ISO 9001 Certified

✓ SGS Verified

✓ 26+ Years Factory

✓ OEM / ODM Ready

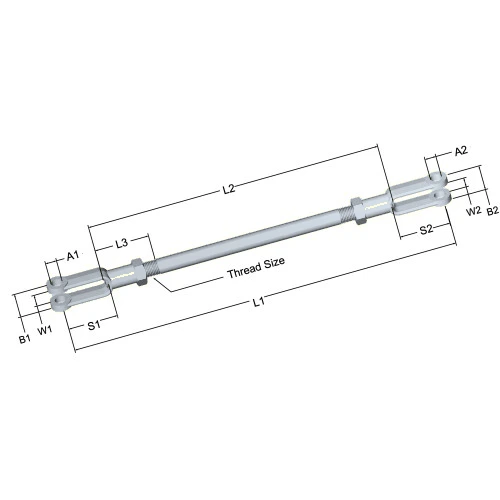

Thread: 3/8-24 RH/LH

Nominal Length: 6.50 in.

L1 Min / Max: 5.9540–7.2500 in.

A1 / A2: 0.375 / 0.375 in.

B1 / B2: 0.875 / 0.875 in.

W1 / W2: 0.438 / 0.438 in.

Weight

0.43 lbs

Material

Carbon steel; chromoly steel; aluminum alloy steel optional; stainless steel optional

Get a Quote →

Request Free Sample Back to Spec. Page

⚡ Typically responds within 24 hours

MOQ:50 pcs / model

Lead Time:7–15 days

Sample:Free (excl. freight)

Payment:T/T · PayPal · L/C

Overview

Linkage Connecting Rod — Aperçu du produit

LCR-089 est une bielle de tringlerie de 6.50 in pour tringleries mécaniques réglables, tiges de commande et ensembles de transmission de mouvement. L’ensemble utilise une géométrie de filetage 3/8-24 à droite/à gauche avec des extrémités de type fourche à trous d’axe de 3/8 in. Les références dimensionnelles sont L1 5.9540-7.2500 in, L2 3.000 in de référence, L3 1.250 in typique, A1/A2 0.375/0.375 in, B1/B2 0.875/0.875 in, S1/S2 1.625/1.625 in et W1/W2 0.438/0.438 in. Les options de matériau sont l’acier au carbone, l’acier chromoly, l’acier d’alliage d’aluminium en option et l’acier inoxydable en option. Confirmez le matériau définitif, la finition, le sens du filetage et la configuration de la quincaillerie avec SYZ lors de la demande de devis.

Size Chart

Linkage Connecting Rod — Gamme complète de dimensions

All available sizes in the Linkage Connecting Rod series. Can’t find your size? Contact us for custom dimensions.

Part Number	Weight (lbs)	Thread	Nominal Length	L1 Min	L1 Max	A1	A2	B1	B2	L2 (ref)	L3 (typ)	S1	S2	W1	W2
LCR-001	0.73	3/8-24 RH/LH	15.75	13.875	17.750	0.375	0.375	0.875	0.875	13.500	2.75	1.625	1.625	0.438	0.438
LCR-002	1.1	3/8-24 RH/LH	27.75	25.875	29.750	0.375	0.375	0.875	0.875	25.500	2.75	1.625	1.625	0.438	0.438
LCR-003	0.63	3/8-24 RH/LH	9.75	7.875	11.750	0.375	0.375	0.875	0.875	7.500	2.750	1.625	1.625	0.438	0.438
LCR-004	1.02	3/8-24 RH/LH	22.50	20.625	24.500	0.375	0.375	0.875	0.875	20.250	2.75	1.625	1.625	0.438	0.438
LCR-005	0.85	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.500	0.500	10.500	2.750	1.625	1.625	0.406	0.406
LCR-006	0.48	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.500	0.500	3.750	1.500	1.625	1.625	0.406	0.406
LCR-007	1.03	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.500	0.500	14.25	2.75	1.625	1.625	0.406	0.406
LCR-008	1.17	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.500	0.500	21.750	2.75	1.625	1.625	0.406	0.406
LCR-009	1.13	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.500	0.500	18.750	2.75	1.625	1.625	0.406	0.406
LCR-010	0.45	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.500	0.500	3.000	1.250	1.625	1.625	0.406	0.406
LCR-011	1.14	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.500	0.500	19.500	2.75	1.625	1.625	0.406	0.406
LCR-012	1.19	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.500	0.500	25.500	2.75	1.625	1.625	0.406	0.406
LCR-013	1.35	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.500	0.500	29.250	2.75	1.625	1.625	0.406	0.406
LCR-014	1.18	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.500	0.500	24.750	2.75	1.625	1.625	0.406	0.406
LCR-015	0.69	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.906	0.906	5.250	2.500	1.625	1.625	0.644	0.644
LCR-016	1.09	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.906	0.906	18.000	2.75	1.625	1.625	0.644	0.644
LCR-017	1.48	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.906	0.906	30.750	2.75	1.625	1.625	0.644	0.644
LCR-018	0.81	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.906	0.906	12.750	2.75	1.625	1.625	0.644	0.644
LCR-019	1.19	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.906	0.906	24.750	2.75	1.625	1.625	0.644	0.644
LCR-020	1.07	1/2-20	11.50	10.876	12.25	0.501	0.501	0.625	0.625	9.000	3.25	2.125	2.125	0.500	0.500
LCR-021	1.19	1/2-20	7.50	6.876	8.25	0.501	0.501	1.125	1.125	5.000	2.25	2.125	2.125	0.875	0.875
LCR-022	2.07	1/2-20	23.50	22.876	24.25	0.501	0.501	1.125	1.125	21.000	3.25	2.125	2.125	0.875	0.875
LCR-023	0.75	3/8-24 RH/LH	16.50	14.625	18.500	0.375	0.375	0.875	0.875	14.25	2.75	1.625	1.625	0.438	0.438
LCR-024	1.14	3/8-24 RH/LH	29.25	27.375	31.250	0.375	0.375	0.875	0.875	27.000	2.75	1.625	1.625	0.438	0.438
LCR-025	0.65	3/8-24 RH/LH	10.50	8.625	12.500	0.375	0.375	0.875	0.875	8.250	2.750	1.625	1.625	0.438	0.438
LCR-026	1.04	3/8-24 RH/LH	23.25	21.375	25.25	0.375	0.375	0.875	0.875	21.000	2.75	1.625	1.625	0.438	0.438
LCR-027	0.68	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.500	0.500	7.500	2.750	1.625	1.625	0.406	0.406
LCR-028	0.48	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.500	0.500	3.750	1.500	1.625	1.625	0.406	0.406
LCR-029	0.64	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.500	0.500	6.750	2.750	1.625	1.625	0.406	0.406
LCR-030	1.13	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.500	0.500	18.750	2.75	1.625	1.625	0.406	0.406
LCR-031	1.36	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.500	0.500	33.000	2.75	1.625	1.625	0.406	0.406
LCR-032	0.56	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.500	0.500	5.250	2.500	1.625	1.625	0.406	0.406
LCR-033	1.1	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.500	0.500	16.50	2.75	1.625	1.625	0.406	0.406
LCR-034	1.34	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.500	0.500	27.750	2.75	1.625	1.625	0.406	0.406
LCR-035	1.35	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.500	0.500	30.000	2.75	1.625	1.625	0.406	0.406
LCR-036	1.19	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.500	0.500	25.500	2.75	1.625	1.625	0.406	0.406
LCR-037	0.72	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.906	0.906	6.000	2.750	1.625	1.625	0.644	0.644
LCR-038	1.11	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.906	0.906	18.750	2.75	1.625	1.625	0.644	0.644
LCR-039	1.55	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.906	0.906	33.000	2.75	1.625	1.625	0.644	0.644
LCR-040	0.84	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.906	0.906	13.500	2.75	1.625	1.625	0.644	0.644
LCR-041	1.21	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.906	0.906	25.500	2.75	1.625	1.625	0.644	0.644
LCR-042	1.18	1/2-20	12.50	11.876	13.25	0.501	0.501	0.625	0.625	10.000	3.25	2.125	2.125	0.500	0.500
LCR-043	1.25	1/2-20	8.50	7.876	9.250	0.501	0.501	1.125	1.125	6.000	2.75	2.125	2.125	0.875	0.875
LCR-044	2.12	1/2-20	24.50	23.876	25.25	0.501	0.501	1.125	1.125	22.000	3.25	2.125	2.125	0.875	0.875
LCR-045	0.39	3/8-24 RH/LH	6.00	5.954	6.000	0.375	0.375	0.875	0.875	1.75	0.625	1.625	1.625	0.438	0.438
LCR-046	0.78	3/8-24 RH/LH	17.25	15.375	19.25	0.375	0.375	0.875	0.875	15.000	2.75	1.625	1.625	0.438	0.438
LCR-047	1.17	3/8-24 RH/LH	30.00	28.125	32.000	0.375	0.375	0.875	0.875	27.750	2.75	1.625	1.625	0.438	0.438
LCR-048	0.67	3/8-24 RH/LH	11.31	9.375	13.250	0.375	0.375	0.875	0.875	9.000	2.750	1.625	1.625	0.438	0.438
LCR-049	1.06	3/8-24 RH/LH	24.00	22.125	26.000	0.375	0.375	0.875	0.875	21.750	2.75	1.625	1.625	0.438	0.438
LCR-050	1.08	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.500	0.500	12.000	2.750	1.625	1.625	0.406	0.406
LCR-051	0.48	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.500	0.500	3.750	1.500	1.625	1.625	0.406	0.406
LCR-052	1.11	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.500	0.500	17.250	2.75	1.625	1.625	0.406	0.406
LCR-053	0.6	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.500	0.500	6.000	2.750	1.625	1.625	0.406	0.406
LCR-054	1.16	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.500	0.500	20.250	2.75	1.625	1.625	0.406	0.406
LCR-055	0.45	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.500	0.500	3.000	1.250	1.625	1.625	0.406	0.406
LCR-056	1.16	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.500	0.500	21.000	2.75	1.625	1.625	0.406	0.406
LCR-057	1.14	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.500	0.500	19.500	2.75	1.625	1.625	0.406	0.406
LCR-058	1.19	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.500	0.500	27.000	2.75	1.625	1.625	0.406	0.406
LCR-059	1.19	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.500	0.500	27.000	2.75	1.625	1.625	0.406	0.406
LCR-060	0.74	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.906	0.906	6.750	2.750	1.625	1.625	0.644	0.644
LCR-061	1.04	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.906	0.906	19.500	2.75	1.625	1.625	0.644	0.644
LCR-062	1.62	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.906	0.906	35.250	2.75	1.625	1.625	0.644	0.644
LCR-063	0.86	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.906	0.906	14.25	2.75	1.625	1.625	0.644	0.644
LCR-064	1.25	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.906	0.906	27.000	2.75	1.625	1.625	0.644	0.644
LCR-065	1.24	1/2-20	13.50	12.876	14.25	0.501	0.501	0.625	0.625	11.000	3.25	2.125	2.125	0.500	0.500
LCR-066	1.31	1/2-20	9.50	8.876	10.25	0.501	0.501	1.125	1.125	7.000	2.75	2.125	2.125	0.875	0.875
LCR-067	0.41	3/8-24 RH/LH	6.25	5.954	6.500	0.375	0.375	0.875	0.875	2.250	0.750	1.625	1.625	0.438	0.438
LCR-068	0.8	3/8-24 RH/LH	18.00	16.125	20.000	0.375	0.375	0.875	0.875	15.750	2.75	1.625	1.625	0.438	0.438
LCR-069	1.19	3/8-24 RH/LH	30.75	28.500	2.75	0.375	0.375	0.875	0.875	28.500	2.75	1.625	1.625	0.438	0.438
LCR-070	0.69	3/8-24 RH/LH	12.75	10.875	14.750	0.375	0.375	0.875	0.875	9.750	2.750	1.625	1.625	0.438	0.438
LCR-071	1.09	3/8-24 RH/LH	24.75	22.875	26.750	0.375	0.375	0.875	0.875	22.50	2.75	1.625	1.625	0.438	0.438
LCR-072	0.85	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.500	0.500	10.500	2.750	1.625	1.625	0.406	0.406
LCR-073	0.6	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.500	0.500	6.000	2.750	1.625	1.625	0.406	0.406
LCR-074	0.72	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.500	0.500	8.250	2.750	1.625	1.625	0.406	0.406
LCR-075	1.16	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.500	0.500	20.250	2.75	1.625	1.625	0.406	0.406
LCR-076	0.43	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.500	0.500	2.250	0.750	1.625	1.625	0.406	0.406
LCR-077	0.56	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.500	0.500	5.250	2.500	1.625	1.625	0.406	0.406
LCR-078	1.14	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.500	0.500	19.500	2.75	1.625	1.625	0.406	0.406
LCR-079	1.16	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.500	0.500	21.000	2.75	1.625	1.625	0.406	0.406
LCR-080	0.94	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.500	0.500	12.750	2.75	1.625	1.625	0.406	0.406
LCR-081	1.34	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.500	0.500	27.750	2.75	1.625	1.625	0.406	0.406
LCR-082	0.92	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.906	0.906	7.500	2.750	1.625	1.625	0.644	0.644
LCR-083	1.16	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.906	0.906	20.250	2.75	1.625	1.625	0.644	0.644
LCR-084	0.48	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.906	0.906	1.75	0.625	1.625	1.625	0.644	0.644
LCR-085	0.88	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.906	0.906	15.000	2.75	1.625	1.625	0.644	0.644
LCR-086	1.27	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.906	0.906	27.750	2.75	1.625	1.625	0.644	0.644
LCR-087	1.29	1/2-20	14.50	13.876	15.25	0.501	0.501	0.625	0.625	12.000	3.25	2.125	2.125	0.500	0.500
LCR-088	1.36	1/2-20	10.50	9.876	11.250	0.501	0.501	1.125	1.125	8.000	3.25	2.125	2.125	0.875	0.875
LCR-089	0.43	3/8-24 RH/LH	6.50	5.9540	7.2500	0.375	0.375	0.875	0.875	3.000	1.250	1.625	1.625	0.438	0.438
LCR-090	0.82	3/8-24 RH/LH	18.75	16.875	20.750	0.375	0.375	0.875	0.875	16.50	2.75	1.625	1.625	0.438	0.438
LCR-091	1.21	3/8-24 RH/LH	31.50	29.625	33.500	0.375	0.375	0.875	0.875	29.250	2.75	1.625	1.625	0.438	0.438
LCR-092	0.72	3/8-24 RH/LH	13.25	11.375	15.250	0.375	0.375	0.875	0.875	10.500	2.750	1.625	1.625	0.438	0.438
LCR-093	1.11	3/8-24 RH/LH	25.50	23.625	27.500	0.375	0.375	0.875	0.875	23.250	2.75	1.625	1.625	0.438	0.438
LCR-094	0.68	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.500	0.500	7.500	2.750	1.625	1.625	0.406	0.406
LCR-095	0.64	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.500	0.500	6.750	2.750	1.625	1.625	0.406	0.406
LCR-096	1.03	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.500	0.500	14.25	2.75	1.625	1.625	0.406	0.406
LCR-097	0.64	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.500	0.500	6.750	2.750	1.625	1.625	0.406	0.406
LCR-098	1.1	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.500	0.500	22.50	2.75	1.625	1.625	0.406	0.406
LCR-099	0.45	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.500	0.500	3.000	1.250	1.625	1.625	0.406	0.406
LCR-100	0.94	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.500	0.500	12.750	2.75	1.625	1.625	0.406	0.406
LCR-101	1.19	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.500	0.500	27.000	2.75	1.625	1.625	0.406	0.406
LCR-102	1.34	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.500	0.500	27.750	2.75	1.625	1.625	0.406	0.406
LCR-103	1.34	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.500	0.500	28.500	2.75	1.625	1.625	0.406	0.406
LCR-104	0.79	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.906	0.906	8.250	2.750	1.625	1.625	0.644	0.644
LCR-105	1.53	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.906	0.906	21.000	2.75	1.625	1.625	0.644	0.644
LCR-106	0.49	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.906	0.906	2.250	0.750	1.625	1.625	0.644	0.644
LCR-107	0.83	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.906	0.906	15.750	2.75	1.625	1.625	0.644	0.644
LCR-108	1.3	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.906	0.906	28.500	2.75	1.625	1.625	0.644	0.644
LCR-109	1.36	1/2-20	15.50	14.876	16.25	0.501	0.501	0.625	0.625	13.000	3.25	2.125	2.125	0.500	0.500
LCR-110	1.36	1/2-20	11.50	10.876	12.25	0.501	0.501	1.125	1.125	9.000	3.25	2.125	2.125	0.875	0.875
LCR-111	0.45	3/8-24 RH/LH	7.00	5.954	8.000	0.375	0.375	0.875	0.875	3.750	1.500	1.625	1.625	0.438	0.438
LCR-112	0.84	3/8-24 RH/LH	19.50	17.625	21.500	0.375	0.375	0.875	0.875	17.250	2.75	1.625	1.625	0.438	0.438
LCR-113	1.24	3/8-24 RH/LH	32.25	30.375	34.250	0.375	0.375	0.875	0.875	30.000	2.75	1.625	1.625	0.438	0.438
LCR-114	0.76	3/8-24 RH/LH	14.25	12.375	16.250	0.375	0.375	0.875	0.875	12.000	2.750	1.625	1.625	0.438	0.438
LCR-115	1.13	3/8-24 RH/LH	26.50	24.375	28.500	0.375	0.375	0.875	0.875	24.000	2.75	1.625	1.625	0.438	0.438
LCR-116	1.08	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.500	0.500	12.000	2.750	1.625	1.625	0.406	0.406
LCR-117	0.72	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.500	0.500	8.250	2.750	1.625	1.625	0.406	0.406
LCR-118	1.13	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.500	0.500	18.750	2.75	1.625	1.625	0.406	0.406
LCR-119	0.72	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.500	0.500	8.250	2.750	1.625	1.625	0.406	0.406
LCR-120	1.44	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.500	0.500	35.250	2.75	1.625	1.625	0.406	0.406
LCR-121	0.56	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.500	0.500	5.250	2.500	1.625	1.625	0.406	0.406
LCR-122	1.17	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.500	0.500	23.250	2.75	1.625	1.625	0.406	0.406
LCR-123	1.34	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.500	0.500	28.500	2.75	1.625	1.625	0.406	0.406
LCR-124	0.99	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.500	0.500	13.500	2.75	1.625	1.625	0.406	0.406
LCR-125	1.35	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.500	0.500	29.250	2.75	1.625	1.625	0.406	0.406
LCR-126	0.81	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.906	0.906	9.000	2.750	1.625	1.625	0.644	0.644
LCR-127	1.2	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.906	0.906	21.750	2.75	1.625	1.625	0.644	0.644
LCR-128	0.51	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.906	0.906	3.000	1.250	1.625	1.625	0.644	0.644
LCR-129	0.93	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.906	0.906	16.50	2.75	1.625	1.625	0.644	0.644
LCR-130	1.32	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.906	0.906	29.250	2.75	1.625	1.625	0.644	0.644
LCR-131	1.4	1/2-20	16.50	15.876	17.25	0.501	0.501	0.625	0.625	14.000	3.25	2.125	2.125	0.500	0.500
LCR-132	1.46	1/2-20	12.50	11.876	13.25	0.501	0.501	1.125	1.125	10.000	3.25	2.125	2.125	0.875	0.875
LCR-133	0.48	3/8-24 RH/LH	7.50	5.594	9.500	0.375	0.375	0.875	0.875	5.250	2.500	1.625	1.625	0.438	0.438
LCR-134	0.87	3/8-24 RH/LH	20.50	18.375	22.500	0.375	0.375	0.875	0.875	18.000	2.75	1.625	1.625	0.438	0.438
LCR-135	1.26	3/8-24 RH/LH	33.00	31.125	35.000	0.375	0.375	0.875	0.875	30.750	2.75	1.625	1.625	0.438	0.438
LCR-136	0.79	3/8-24 RH/LH	15.00	13.125	17.000	0.375	0.375	0.875	0.875	12.750	2.75	1.625	1.625	0.438	0.438
LCR-137	1.15	3/8-24 RH/LH	27.00	25.125	29.000	0.375	0.375	0.875	0.875	24.750	2.75	1.625	1.625	0.438	0.438
LCR-138	1.12	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.500	0.500	18.000	2.75	1.625	1.625	0.406	0.406
LCR-139	0.6	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.500	0.500	6.000	2.750	1.625	1.625	0.406	0.406
LCR-140	1.07	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.500	0.500	15.000	2.75	1.625	1.625	0.406	0.406
LCR-141	1.1	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.500	0.500	22.50	2.75	1.625	1.625	0.406	0.406
LCR-142	1.17	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.500	0.500	21.750	2.75	1.625	1.625	0.406	0.406
LCR-143	0.45	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.500	0.500	3.000	1.250	1.625	1.625	0.406	0.406
LCR-144	1.18	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.500	0.500	24.000	2.75	1.625	1.625	0.406	0.406
LCR-145	1.34	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.500	0.500	27.750	2.75	1.625	1.625	0.406	0.406
LCR-146	1.36	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.500	0.500	30.750	2.75	1.625	1.625	0.406	0.406
LCR-147	1.35	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.500	0.500	30.000	2.75	1.625	1.625	0.406	0.406
LCR-148	1.03	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.906	0.906	9.750	2.750	1.625	1.625	0.644	0.644
LCR-149	1.23	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.906	0.906	22.50	2.75	1.625	1.625	0.644	0.644
LCR-150	0.54	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.906	0.906	3.750	1.500	1.625	1.625	0.644	0.644
LCR-151	0.95	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.906	0.906	17.250	2.75	1.625	1.625	0.644	0.644
LCR-152	1.34	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.906	0.906	30.000	2.75	1.625	1.625	0.644	0.644
LCR-153	1.47	1/2-20	17.50	16.876	18.250	0.501	0.501	0.625	0.625	15.000	3.25	2.125	2.125	0.500	0.500
LCR-154	1.52	1/2-20	13.50	12.876	14.25	0.501	0.501	1.125	1.125	11.000	3.25	2.125	2.125	0.875	0.875
LCR-155	0.5	3/8-24 RH/LH	8.31	6.375	10.250	0.375	0.375	0.875	0.875	6.000	2.750	1.625	1.625	0.438	0.438
LCR-156	0.89	3/8-24 RH/LH	21.00	19.125	23.000	0.375	0.375	0.875	0.875	18.750	2.75	1.625	1.625	0.438	0.438
LCR-157	1.33	3/8-24 RH/LH	35.25	33.375	37.250	0.375	0.375	0.875	0.875	33.000	2.75	1.625	1.625	0.438	0.438
LCR-158	0.81	3/8-24 RH/LH	15.75	13.875	17.750	0.375	0.375	0.875	0.875	13.500	2.75	1.625	1.625	0.438	0.438
LCR-159	1.18	3/8-24 RH/LH	27.75	25.875	29.750	0.375	0.375	0.875	0.875	25.500	2.75	1.625	1.625	0.438	0.438
LCR-160	0.85	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.500	0.500	10.500	2.750	1.625	1.625	0.406	0.406
LCR-161	0.64	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.500	0.500	6.750	2.750	1.625	1.625	0.406	0.406
LCR-162	1.16	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.500	0.500	20.250	2.75	1.625	1.625	0.406	0.406
LCR-163	1.17	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.500	0.500	21.750	2.75	1.625	1.625	0.406	0.406
LCR-164	0.43	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.500	0.500	2.250	0.750	1.625	1.625	0.406	0.406
LCR-165	0.56	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.500	0.500	5.250	2.500	1.625	1.625	0.406	0.406
LCR-166	1.18	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.500	0.500	24.750	2.75	1.625	1.625	0.406	0.406
LCR-167	1.35	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.500	0.500	29.250	2.75	1.625	1.625	0.406	0.406
LCR-168	1.34	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.500	0.500	28.500	2.75	1.625	1.625	0.406	0.406
LCR-169	1.36	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.500	0.500	30.750	2.75	1.625	1.625	0.406	0.406
LCR-170	1.07	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.906	0.906	10.500	2.750	1.625	1.625	0.644	0.644
LCR-171	1.25	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.906	0.906	23.250	2.75	1.625	1.625	0.644	0.644
LCR-172	0.58	3/8-24 RH/LH	7.25	6.626	7.75	0.375	0.375	0.906	0.906	5.250	2.500	1.625	1.625	0.644	0.644
LCR-173	0.97	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.906	0.906	18.000	2.75	1.625	1.625	0.644	0.644
LCR-174	1.37	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.906	0.906	30.750	2.75	1.625	1.625	0.644	0.644
LCR-175	1.51	1/2-20	18.50	17.876	19.250	0.501	0.501	0.625	0.625	16.000	3.25	2.125	2.125	0.500	0.500
LCR-176	1.57	1/2-20	14.50	13.876	15.25	0.501	0.501	1.125	1.125	12.000	3.25	2.125	2.125	0.875	0.875
LCR-177	0.52	3/8-24 RH/LH	9.00	7.125	11.000	0.375	0.375	0.875	0.875	6.750	2.750	1.625	1.625	0.438	0.438
LCR-178	0.91	3/8-24 RH/LH	21.75	19.875	23.750	0.375	0.375	0.875	0.875	19.500	2.75	1.625	1.625	0.438	0.438
LCR-179	1.4	3/8-24 RH/LH	37.50	35.625	39.500	0.375	0.375	0.875	0.875	35.250	2.75	1.625	1.625	0.438	0.438
LCR-180	0.83	3/8-24 RH/LH	16.50	14.625	18.500	0.375	0.375	0.875	0.875	14.25	2.75	1.625	1.625	0.438	0.438
LCR-181	1.22	3/8-24 RH/LH	29.25	27.375	31.250	0.375	0.375	0.875	0.875	27.000	2.75	1.625	1.625	0.438	0.438
LCR-182	1.12	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.500	0.500	18.000	2.75	1.625	1.625	0.406	0.406
LCR-183	1.07	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.500	0.500	15.000	2.75	1.625	1.625	0.406	0.406
LCR-184	0.8	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.500	0.500	9.750	2.750	1.625	1.625	0.406	0.406
LCR-185	1.36	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.500	0.500	33.000	2.75	1.625	1.625	0.406	0.406
LCR-186	1.09	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.500	0.500	15.750	2.75	1.625	1.625	0.406	0.406
LCR-187	0.76	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.500	0.500	9.000	2.750	1.625	1.625	0.406	0.406
LCR-188	1.16	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.500	0.500	21.000	2.75	1.625	1.625	0.406	0.406
LCR-189	0.76	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.500	0.500	9.000	2.750	1.625	1.625	0.406	0.406
LCR-190	1.1	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.500	0.500	16.50	2.75	1.625	1.625	0.406	0.406
LCR-191	0.42	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.500	0.500	1.75	0.625	1.625	1.625	0.406	0.406
LCR-192	1.27	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.906	0.906	12.000	2.750	1.625	1.625	0.644	0.644
LCR-193	1.27	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.906	0.906	24.000	2.75	1.625	1.625	0.644	0.644
LCR-194	0.61	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.906	0.906	6.000	2.750	1.625	1.625	0.644	0.644
LCR-195	1	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.906	0.906	18.750	2.75	1.625	1.625	0.644	0.644
LCR-196	1.44	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.906	0.906	33.000	2.75	1.625	1.625	0.644	0.644
LCR-197	1.58	1/2-20	19.50	18.876	20.25	0.501	0.501	0.625	0.625	17.000	3.25	2.125	2.125	0.500	0.500
LCR-198	1.64	1/2-20	15.50	14.876	16.25	0.501	0.501	1.125	1.125	13.000	3.25	2.125	2.125	0.875	0.875
LCR-199	0.55	3/8-24 RH/LH	9.75	7.875	11.750	0.375	0.375	0.875	0.875	7.500	2.750	1.625	1.625	0.438	0.438
LCR-200	0.94	3/8-24 RH/LH	22.50	20.625	24.500	0.375	0.375	0.875	0.875	20.250	2.75	1.625	1.625	0.438	0.438
LCR-201	0.47	3/8-24 RH/LH	6.00	5.954	6.000	0.375	0.375	0.875	0.875	1.75	0.625	1.625	1.625	0.438	0.438
LCR-202	0.86	3/8-24 RH/LH	17.25	15.375	19.25	0.375	0.375	0.875	0.875	15.000	2.75	1.625	1.625	0.438	0.438
LCR-203	1.25	3/8-24 RH/LH	30.00	28.125	32.000	0.375	0.375	0.875	0.875	27.750	2.75	1.625	1.625	0.438	0.438
LCR-204	0.68	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.500	0.500	7.500	2.750	1.625	1.625	0.406	0.406
LCR-205	0.72	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.500	0.500	8.250	2.750	1.625	1.625	0.406	0.406
LCR-206	1.13	3/8-24 RH/LH	20.75	20.126	21.25	0.375	0.375	0.500	0.500	18.750	2.75	1.625	1.625	0.406	0.406
LCR-207	1.07	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.500	0.500	15.000	2.75	1.625	1.625	0.406	0.406
LCR-208	1.09	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.500	0.500	15.750	2.75	1.625	1.625	0.406	0.406
LCR-209	0.76	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.500	0.500	9.000	2.750	1.625	1.625	0.406	0.406
LCR-210	0.99	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.500	0.500	13.500	2.75	1.625	1.625	0.406	0.406
LCR-211	1.17	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.500	0.500	23.250	2.75	1.625	1.625	0.406	0.406
LCR-212	1.35	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.500	0.500	29.250	2.75	1.625	1.625	0.406	0.406
LCR-213	0.42	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.500	0.500	1.75	0.625	1.625	1.625	0.406	0.406
LCR-214	0.92	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.906	0.906	12.750	2.75	1.625	1.625	0.644	0.644
LCR-215	1.3	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.906	0.906	24.750	2.75	1.625	1.625	0.644	0.644
LCR-216	0.63	3/8-24 RH/LH	8.75	8.126	9.25	0.375	0.375	0.906	0.906	6.750	2.750	1.625	1.625	0.644	0.644
LCR-217	0.92	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.906	0.906	19.500	2.75	1.625	1.625	0.644	0.644
LCR-218	1.51	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.906	0.906	35.250	2.75	1.625	1.625	0.644	0.644
LCR-219	1.62	1/2-20	20.50	19.876	21.25	0.501	0.501	0.625	0.625	18.000	3.25	2.125	2.125	0.500	0.500
LCR-220	1.68	1/2-20	16.50	15.876	17.25	0.501	0.501	1.125	1.125	14.000	3.25	2.125	2.125	0.875	0.875
LCR-221	0.57	3/8-24 RH/LH	10.50	8.625	12.500	0.375	0.375	0.875	0.875	8.250	2.750	1.625	1.625	0.438	0.438
LCR-222	0.96	3/8-24 RH/LH	23.25	21.375	25.25	0.375	0.375	0.875	0.875	21.000	2.75	1.625	1.625	0.438	0.438
LCR-223	0.49	3/8-24 RH/LH	6.25	5.954	6.500	0.375	0.375	0.875	0.875	2.250	0.750	1.625	1.625	0.438	0.438
LCR-224	0.88	3/8-24 RH/LH	18.00	16.125	20.000	0.375	0.375	0.875	0.875	15.750	2.75	1.625	1.625	0.438	0.438
LCR-225	1.27	3/8-24 RH/LH	30.75	28.500	2.75	0.375	0.375	0.875	0.875	28.500	2.75	1.625	1.625	0.438	0.438
LCR-226	1.08	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.500	0.500	12.000	2.750	1.625	1.625	0.406	0.406
LCR-227	0.48	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.500	0.500	3.750	1.500	1.625	1.625	0.406	0.406
LCR-228	1.1	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.500	0.500	22.50	2.75	1.625	1.625	0.406	0.406
LCR-229	0.8	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.500	0.500	9.750	2.750	1.625	1.625	0.406	0.406
LCR-230	0.43	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.500	0.500	2.250	0.750	1.625	1.625	0.406	0.406
LCR-231	0.94	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.500	0.500	12.750	2.75	1.625	1.625	0.406	0.406
LCR-232	1.19	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.500	0.500	25.500	2.75	1.625	1.625	0.406	0.406
LCR-233	1.18	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.500	0.500	24.000	2.75	1.625	1.625	0.406	0.406
LCR-234	1.35	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.500	0.500	30.000	2.75	1.625	1.625	0.406	0.406
LCR-235	0.42	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.500	0.500	1.75	0.625	1.625	1.625	0.406	0.406
LCR-236	0.95	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.906	0.906	13.500	2.75	1.625	1.625	0.644	0.644
LCR-237	1.32	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.906	0.906	25.500	2.75	1.625	1.625	0.644	0.644
LCR-238	0.81	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.906	0.906	7.500	2.750	1.625	1.625	0.644	0.644
LCR-239	1.05	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.906	0.906	20.250	2.75	1.625	1.625	0.644	0.644
LCR-240	0.8	1/2-20	6.00	5.75	6.25	0.501	0.501	0.625	0.625	3.000	1.250	2.125	2.125	0.500	0.500
LCR-241	1.69	1/2-20	21.50	20.876	22.25	0.501	0.501	0.625	0.625	19.000	3.25	2.125	2.125	0.500	0.500
LCR-242	1.75	1/2-20	17.50	16.876	18.250	0.501	0.501	1.125	1.125	15.000	3.25	2.125	2.125	0.875	0.875
LCR-243	0.59	3/8-24 RH/LH	11.31	9.375	13.250	0.375	0.375	0.875	0.875	9.000	2.750	1.625	1.625	0.438	0.438
LCR-244	0.98	3/8-24 RH/LH	24.00	22.125	26.000	0.375	0.375	0.875	0.875	21.750	2.75	1.625	1.625	0.438	0.438
LCR-245	0.51	3/8-24 RH/LH	6.50	5.9540	7.2500	0.375	0.375	0.875	0.875	3.000	1.250	1.625	1.625	0.438	0.438
LCR-246	0.9	3/8-24 RH/LH	18.75	16.875	20.750	0.375	0.375	0.875	0.875	16.50	2.75	1.625	1.625	0.438	0.438
LCR-247	1.29	3/8-24 RH/LH	31.50	29.625	33.500	0.375	0.375	0.875	0.875	29.250	2.75	1.625	1.625	0.438	0.438
LCR-248	1.12	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.500	0.500	18.000	2.75	1.625	1.625	0.406	0.406
LCR-249	0.8	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.500	0.500	9.750	2.750	1.625	1.625	0.406	0.406
LCR-250	1.11	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.500	0.500	17.250	2.75	1.625	1.625	0.406	0.406
LCR-251	1.36	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.500	0.500	33.000	2.75	1.625	1.625	0.406	0.406
LCR-252	1.36	3/8-24 RH/LH	35	34.376	35.5	0.375	0.375	0.500	0.500	33.000	2.75	1.625	1.625	0.406	0.406
LCR-253	0.99	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.500	0.500	13.500	2.75	1.625	1.625	0.406	0.406
LCR-254	1.17	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.500	0.500	23.250	2.75	1.625	1.625	0.406	0.406
LCR-255	1.18	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.500	0.500	24.750	2.75	1.625	1.625	0.406	0.406
LCR-256	1.14	3/8-24 RH/LH	21.50	20.876	22	0.375	0.375	0.500	0.500	19.500	2.75	1.625	1.625	0.406	0.406
LCR-257	0.42	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.500	0.500	1.75	0.625	1.625	1.625	0.406	0.406
LCR-258	0.97	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.906	0.906	14.25	2.75	1.625	1.625	0.644	0.644
LCR-259	1.36	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.906	0.906	27.000	2.75	1.625	1.625	0.644	0.644
LCR-260	0.68	3/8-24 RH/LH	10.25	9.626	10.75	0.375	0.375	0.906	0.906	8.250	2.750	1.625	1.625	0.644	0.644
LCR-261	1.42	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.906	0.906	21.000	2.75	1.625	1.625	0.644	0.644
LCR-262	0.86	1/2-20	6.50	5.876	7.25	0.501	0.501	0.625	0.625	4.000	1.75	2.125	2.125	0.500	0.500
LCR-263	1.73	1/2-20	22.50	21.876	23.25	0.501	0.501	0.625	0.625	20.000	3.25	2.125	2.125	0.500	0.500
LCR-264	1.79	1/2-20	18.50	17.876	19.250	0.501	0.501	1.125	1.125	16.000	3.25	2.125	2.125	0.875	0.875
LCR-265	0.61	3/8-24 RH/LH	12.75	10.875	14.750	0.375	0.375	0.875	0.875	9.750	2.750	1.625	1.625	0.438	0.438
LCR-266	1.01	3/8-24 RH/LH	24.75	22.875	26.750	0.375	0.375	0.875	0.875	22.50	2.75	1.625	1.625	0.438	0.438
LCR-267	0.53	3/8-24 RH/LH	7.00	5.954	8.000	0.375	0.375	0.875	0.875	3.750	1.500	1.625	1.625	0.438	0.438
LCR-268	0.92	3/8-24 RH/LH	19.50	17.625	21.500	0.375	0.375	0.875	0.875	17.250	2.75	1.625	1.625	0.438	0.438
LCR-269	1.32	3/8-24 RH/LH	32.25	30.375	34.250	0.375	0.375	0.875	0.875	30.000	2.75	1.625	1.625	0.438	0.438
LCR-270	0.85	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.500	0.500	10.500	2.750	1.625	1.625	0.406	0.406
LCR-271	1.11	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.500	0.500	17.250	2.75	1.625	1.625	0.406	0.406
LCR-272	1.17	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.500	0.500	21.750	2.75	1.625	1.625	0.406	0.406
LCR-273	1.44	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.500	0.500	35.250	2.75	1.625	1.625	0.406	0.406
LCR-274	1.09	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.500	0.500	15.750	2.75	1.625	1.625	0.406	0.406
LCR-275	0.94	3/8-24 RH/LH	14.75	14.126	15.25	0.375	0.375	0.500	0.500	12.750	2.75	1.625	1.625	0.406	0.406
LCR-276	1.18	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.500	0.500	24.000	2.75	1.625	1.625	0.406	0.406
LCR-277	1.35	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.500	0.500	30.000	2.75	1.625	1.625	0.406	0.406
LCR-278	1.16	3/8-24 RH/LH	23	22.376	23.5	0.375	0.375	0.500	0.500	21.000	2.75	1.625	1.625	0.406	0.406
LCR-279	0.59	3/8-24 RH/LH	4.25	4.204	4.3	0.375	0.375	0.906	0.906	1.75	0.625	1.625	1.625	0.644	0.644
LCR-280	0.99	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.906	0.906	15.000	2.75	1.625	1.625	0.644	0.644
LCR-281	1.39	3/8-24 RH/LH	29.75	29.126	30.25	0.375	0.375	0.906	0.906	27.750	2.75	1.625	1.625	0.644	0.644
LCR-282	0.7	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.906	0.906	9.000	2.750	1.625	1.625	0.644	0.644
LCR-283	1.09	3/8-24 RH/LH	23.75	23.126	24.25	0.375	0.375	0.906	0.906	21.750	2.75	1.625	1.625	0.644	0.644
LCR-284	0.91	1/2-20	7.50	6.876	8.25	0.501	0.501	0.625	0.625	5.000	2.25	2.125	2.125	0.500	0.500
LCR-285	1.78	1/2-20	23.50	22.876	24.25	0.501	0.501	0.625	0.625	21.000	3.25	2.125	2.125	0.500	0.500
LCR-286	1.87	1/2-20	19.50	18.876	20.25	0.501	0.501	1.125	1.125	17.000	3.25	2.125	2.125	0.875	0.875
LCR-287	0.64	3/8-24 RH/LH	13.25	11.375	15.250	0.375	0.375	0.875	0.875	10.500	2.750	1.625	1.625	0.438	0.438
LCR-288	1.03	3/8-24 RH/LH	25.50	23.625	27.500	0.375	0.375	0.875	0.875	23.250	2.75	1.625	1.625	0.438	0.438
LCR-289	0.56	3/8-24 RH/LH	7.50	5.594	9.500	0.375	0.375	0.875	0.875	5.250	2.500	1.625	1.625	0.438	0.438
LCR-290	0.95	3/8-24 RH/LH	20.50	18.375	22.500	0.375	0.375	0.875	0.875	18.000	2.75	1.625	1.625	0.438	0.438
LCR-291	1.34	3/8-24 RH/LH	33.00	31.125	35.000	0.375	0.375	0.875	0.875	30.750	2.75	1.625	1.625	0.438	0.438
LCR-292	0.68	3/8-24 RH/LH	9.50	8.76	10	0.375	0.375	0.500	0.500	7.500	2.750	1.625	1.625	0.406	0.406
LCR-293	1.07	3/8-24 RH/LH	17.00	16.376	17.5	0.375	0.375	0.500	0.500	15.000	2.75	1.625	1.625	0.406	0.406
LCR-294	1.16	3/8-24 RH/LH	22.25	21.626	22.75	0.375	0.375	0.500	0.500	20.250	2.75	1.625	1.625	0.406	0.406
LCR-295	1.11	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.500	0.500	17.250	2.75	1.625	1.625	0.406	0.406
LCR-296	1.44	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.500	0.500	35.250	2.75	1.625	1.625	0.406	0.406
LCR-297	1.1	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.500	0.500	16.50	2.75	1.625	1.625	0.406	0.406
LCR-298	1.18	3/8-24 RH/LH	26.75	26.126	27.25	0.375	0.375	0.500	0.500	24.750	2.75	1.625	1.625	0.406	0.406
LCR-299	1.34	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.500	0.500	28.500	2.75	1.625	1.625	0.406	0.406
LCR-300	1.36	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.500	0.500	30.750	2.75	1.625	1.625	0.406	0.406
LCR-301	0.6	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.906	0.906	2.250	0.750	1.625	1.625	0.644	0.644
LCR-302	0.94	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.906	0.906	15.750	2.75	1.625	1.625	0.644	0.644
LCR-303	1.41	3/8-24 RH/LH	30.50	29.876	31	0.375	0.375	0.906	0.906	28.500	2.75	1.625	1.625	0.644	0.644
LCR-304	0.92	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.906	0.906	9.750	2.750	1.625	1.625	0.644	0.644
LCR-305	1.12	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.906	0.906	22.50	2.75	1.625	1.625	0.644	0.644
LCR-306	0.97	1/2-20	8.50	7.876	9.250	0.501	0.501	0.625	0.625	6.000	2.75	2.125	2.125	0.500	0.500
LCR-307	1.83	1/2-20	24.50	23.876	25.25	0.501	0.501	0.625	0.625	22.000	3.25	2.125	2.125	0.500	0.500
LCR-308	1.9	1/2-20	20.50	19.876	21.25	0.501	0.501	1.125	1.125	18.000	3.25	2.125	2.125	0.875	0.875
LCR-309	0.68	3/8-24 RH/LH	14.25	12.375	16.250	0.375	0.375	0.875	0.875	12.000	2.750	1.625	1.625	0.438	0.438
LCR-310	1.05	3/8-24 RH/LH	26.50	24.375	28.500	0.375	0.375	0.875	0.875	24.000	2.75	1.625	1.625	0.438	0.438
LCR-311	0.58	3/8-24 RH/LH	8.31	6.375	10.250	0.375	0.375	0.875	0.875	6.000	2.750	1.625	1.625	0.438	0.438
LCR-312	0.97	3/8-24 RH/LH	21.00	19.125	23.000	0.375	0.375	0.875	0.875	18.750	2.75	1.625	1.625	0.438	0.438
LCR-313	1.41	3/8-24 RH/LH	35.25	33.375	37.250	0.375	0.375	0.875	0.875	33.000	2.75	1.625	1.625	0.438	0.438
LCR-314	1.08	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.500	0.500	12.000	2.750	1.625	1.625	0.406	0.406
LCR-315	0.8	3/8-24 RH/LH	11.75	11.126	12.25	0.375	0.375	0.500	0.500	9.750	2.750	1.625	1.625	0.406	0.406
LCR-316	1.03	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.500	0.500	14.25	2.75	1.625	1.625	0.406	0.406
LCR-317	1.03	3/8-24 RH/LH	16.00	14.976	16.75	0.375	0.375	0.500	0.500	14.25	2.75	1.625	1.625	0.406	0.406
LCR-318	0.43	3/8-24 RH/LH	4.50	4.5	4.7	0.375	0.375	0.500	0.500	2.250	0.750	1.625	1.625	0.406	0.406
LCR-319	0.99	3/8-24 RH/LH	15.50	14.876	16	0.375	0.375	0.500	0.500	13.500	2.75	1.625	1.625	0.406	0.406
LCR-320	1.1	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.500	0.500	16.50	2.75	1.625	1.625	0.406	0.406
LCR-321	1.19	3/8-24 RH/LH	27.50	26.876	28	0.375	0.375	0.500	0.500	25.500	2.75	1.625	1.625	0.406	0.406
LCR-322	1.17	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.500	0.500	23.250	2.75	1.625	1.625	0.406	0.406
LCR-323	0.63	3/8-24 RH/LH	5.00	4.5	5.5	0.375	0.375	0.906	0.906	3.000	1.250	1.625	1.625	0.644	0.644
LCR-324	1.04	3/8-24 RH/LH	18.50	17.876	19	0.375	0.375	0.906	0.906	16.50	2.75	1.625	1.625	0.644	0.644
LCR-325	1.43	3/8-24 RH/LH	31.25	30.626	31.75	0.375	0.375	0.906	0.906	29.250	2.75	1.625	1.625	0.644	0.644
LCR-326	0.96	3/8-24 RH/LH	12.50	11.876	13	0.375	0.375	0.906	0.906	10.500	2.750	1.625	1.625	0.644	0.644
LCR-327	1.14	3/8-24 RH/LH	25.25	24.626	25.75	0.375	0.375	0.906	0.906	23.250	2.75	1.625	1.625	0.644	0.644
LCR-328	1.03	1/2-20	9.50	8.876	10.25	0.501	0.501	0.625	0.625	7.000	2.75	2.125	2.125	0.500	0.500
LCR-329	1.08	1/2-20	6.00	5.75	6.25	0.501	0.501	1.125	1.125	3.000	1.250	2.125	2.125	0.875	0.875
LCR-330	1.98	1/2-20	21.50	20.876	22.25	0.501	0.501	1.125	1.125	19.000	3.25	2.125	2.125	0.875	0.875
LCR-331	0.71	3/8-24 RH/LH	15.00	13.125	17.000	0.375	0.375	0.875	0.875	12.750	2.75	1.625	1.625	0.438	0.438
LCR-332	1.07	3/8-24 RH/LH	27.00	25.125	29.000	0.375	0.375	0.875	0.875	24.750	2.75	1.625	1.625	0.438	0.438
LCR-333	0.6	3/8-24 RH/LH	9.00	7.125	11.000	0.375	0.375	0.875	0.875	6.750	2.750	1.625	1.625	0.438	0.438
LCR-334	0.99	3/8-24 RH/LH	21.75	19.875	23.750	0.375	0.375	0.875	0.875	19.500	2.75	1.625	1.625	0.438	0.438
LCR-335	1.48	3/8-24 RH/LH	37.50	35.625	39.500	0.375	0.375	0.875	0.875	35.250	2.75	1.625	1.625	0.438	0.438
LCR-336	1.12	3/8-24 RH/LH	20.00	19.376	20.5	0.375	0.375	0.500	0.500	18.000	2.75	1.625	1.625	0.406	0.406
LCR-337	0.6	3/8-24 RH/LH	8.00	7.376	8.5	0.375	0.375	0.500	0.500	6.000	2.750	1.625	1.625	0.406	0.406
LCR-338	1.1	3/8-24 RH/LH	24.50	23.876	25	0.375	0.375	0.500	0.500	22.50	2.75	1.625	1.625	0.406	0.406
LCR-339	1.44	3/8-24 RH/LH	37.25	36.626	37.75	0.375	0.375	0.500	0.500	35.250	2.75	1.625	1.625	0.406	0.406
LCR-340	1.09	3/8-24 RH/LH	17.75	17.126	18.25	0.375	0.375	0.500	0.500	15.750	2.75	1.625	1.625	0.406	0.406
LCR-341	0.76	3/8-24 RH/LH	11.00	10.376	11.5	0.375	0.375	0.500	0.500	9.000	2.750	1.625	1.625	0.406	0.406
LCR-342	1.19	3/8-24 RH/LH	29.00	28.376	29.5	0.375	0.375	0.500	0.500	27.000	2.75	1.625	1.625	0.406	0.406
LCR-343	1.36	3/8-24 RH/LH	32.75	32.126	33.25	0.375	0.375	0.500	0.500	30.750	2.75	1.625	1.625	0.406	0.406
LCR-344	1.18	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.500	0.500	24.000	2.75	1.625	1.625	0.406	0.406
LCR-345	0.65	3/8-24 RH/LH	5.75	5.126	6.25	0.375	0.375	0.906	0.906	3.750	1.500	1.625	1.625	0.644	0.644
LCR-346	1.06	3/8-24 RH/LH	19.25	18.626	19.75	0.375	0.375	0.906	0.906	17.250	2.75	1.625	1.625	0.644	0.644
LCR-347	1.45	3/8-24 RH/LH	32.00	31.376	32.50	0.375	0.375	0.906	0.906	30.000	2.75	1.625	1.625	0.644	0.644
LCR-348	1.16	3/8-24 RH/LH	14.00	13.376	14.5	0.375	0.375	0.906	0.906	12.000	2.750	1.625	1.625	0.644	0.644
LCR-349	1.16	3/8-24 RH/LH	26	25.376	26.5	0.375	0.375	0.906	0.906	24.000	2.75	1.625	1.625	0.644	0.644
LCR-350	1.07	1/2-20	10.50	9.876	11.250	0.501	0.501	0.625	0.625	8.000	3.25	2.125	2.125	0.500	0.500
LCR-351	1.14	1/2-20	6.50	5.876	7.25	0.501	0.501	1.125	1.125	4.000	1.75	2.125	2.125	0.875	0.875
LCR-352	2.01	1/2-20	22.50	21.876	23.25	0.501	0.501	1.125	1.125	20.000	3.25	2.125	2.125	0.875	0.875

Quality Control

Chaque unité est inspectée avant expédition

🔩

Raw Material Inspection

Material certifications verified. Composition confirmed by spectrometer before machining begins.

🔍

Thread Gauge Inspection

100% go/no-go gauge check on all threaded sections. Zero tolerance on dimensional non-conformance.

⚖️

Load Capacity Test

Static and dynamic load tests run on representative samples from each production batch.

📏

Dimensional Measurement

CMM verification of critical dimensions — ball diameter, bore, thread pitch, and body length.

🔬

Surface Inspection

Visual and tactile inspection for burrs, scratches, surface cracks, and plating defects.

🔄

Articulation Test

Misalignment angle and torque measured to confirm liner performance meets specification.

🏆

Heat Treatment Verify

Hardness tests confirm proper heat treatment on chromoly steel bodies and bearing balls.

📋

Batch Documentation

Full traceability from raw material heat number to finished part. COC and inspection reports available.

Applications

Where Linkage Rods Are Used

Mechanical Control Linkages

Connecting rods transfer motion between levers, shafts, actuators, and control arms while rod ends accommodate angular change at each attachment. Match overall length and end geometry to the mechanism.

Steering, Suspension & Stabilizer Systems

Preassembled or fabricated linkage rods can be used in steering and suspension systems where accurate length and repeatable end connections are important. Check joint orientation and travel before final tightening.

Agricultural and Industrial Equipment

Longer linkage assemblies are common in machine controls, agricultural mechanisms, and industrial equipment. Select the race and rod-end material for the expected oscillation, contamination, load, and maintenance plan.

Produits associés

Autres produits de la série Linkage Connecting Rod Series

All Products →

LCR-345 Bielle de tringlerie 5.75 in, filetage à droite/à gauche 3/8-24, filetages de goujon de rotule 3/8-24, bague en nylon

LCR-345

View Product →

LCR-344 Bielle de tringlerie 26.00 in, filetage à droite/à gauche 3/8-24, alésages de 3/8 in, bague en bronze

LCR-344

View Product →

LCR-343 Bielle de tringlerie 32.75 in, filetage à droite/à gauche 3/8-24, alésages de 3/8 in, bague en acier

LCR-343

View Product →

LCR-342 Bielle de tringlerie 29.00 in, filetage à droite/à gauche 3/8-24, alésages de 3/8 in, bague en acier

LCR-342

View Product →

Get a Quote

Demander un devis pour la série Linkage Connecting Rod

Share your part number, required quantity, and any special material or packaging requirements. We respond within 24 hours.

✉

[email protected]

⚡ Reply in 24 hrs

🎁 Free samples

🔒 NDA available

📦 MOQ from 50 pcs

FAQ

Linkage Connecting Rod Questions fréquentes sur

À quoi le LCR-089 est-il destiné?

La LCR-089 est une bielle de longueur nominale de 6.50 in pour les liaisons mécaniques réglables, les tiges de commande et les ensembles de transmission de mouvement, avec une section centrale filetée 3/8-24 RH/LH et une connexion à trou d’axe de type fourchette de 3/8 in à chaque extrémité.

Quelle est la plage de longueur réglable du LCR-089?

La LCR-089 offre une plage de réglage globale L1 de 5.9540–7.2500 in, avec une longueur de référence L2 de 3.000 in et une dimension type L3 de 1.250 in, soit environ 1.3 in de réglage total de longueur via les section centrale filetée 3/8-24 RH/LH.

Quel style d’extrémité le LCR-089 utilise-t-il?

Chaque extrémité de la LCR-089 est une connexion à trou d’axe de type fourchette de 3/8 in. La fiche de cette configuration ne précise pas les goupilles ni la quincaillerie incluses ; confirmez donc les besoins en goupilles de chape et en quincaillerie auprès de SYZ lors de la commande.

Le LCR-089 est-il disponible dans d’autres matériaux que l’acier standard?

La construction standard est en acier au carbone. L’acier chromoly est également proposé, avec l’alliage d’aluminium et l’acier inoxydable disponibles en matériaux optionnels — confirmez le matériau, la finition et le sens du filetage auprès de SYZ avant de commander.

Comment le filetage droite/gauche du LCR-089 fonctionne-t-il pour le réglage de la longueur?

La configuration 3/8-24 RH/LH place un filetage à droite sur une extrémité et un filetage à gauche sur l’autre, à la manière d’un ridoir, de sorte que la rotation du corps central rapproche ou éloigne les deux extrémités ensemble, modifiant la longueur installée sans dévisser l’une ou l’autre extrémité.

SYZ peut-il produire une version du LCR-089 avec une longueur ou un filetage sur mesure?

Oui. SYZ peut adapter la longueur nominale, la taille/le sens du filetage, le type d’extrémité et le matériau pour les projets de liaisons OEM ou sur mesure — indiquez votre plage L1 cible et le filetage de montage lors de la demande de devis pour la LCR-089.

LCR-089 Bielle de tringlerie 6.50 in, filetage à droite/à gauche 3/8-24, trous d’axe de 3/8 in

Linkage Connecting Rod · LCR-089

50 pcs

Min. Order

Free Sample Get a Quote →
